Journal of Entomology and Zoology

EDITED BY POMONA COLLEGE, DEPARTMENT OF ZOOLOGY

Subscription $1.00 to domestic, $1.25 to foreign countries.

This journal is especially offered in exchange for zoological
and entomological journals, proceedings, transactions, reports
of societies, museums, laboratories and expeditions.

The pages of the journal are especially open to western entomologists
and zoologists. Notes and papers relating to western
and Californian forms and conditions are particularly desired,
but short morphological, systematic or economic studies from
any locality will be considered for publication.

Manuscripts submitted should be typewritten on one side of
paper about 8 by 11 inches. Foot notes, tables, explanations of
figures, etc., should be written on separate sheets. Foot notes
and figures should be numbered consecutively throughout. The
desired position of foot notes and figures should be clearly
indicated in the manuscript.

Figures should be drawn so that they may be reproduced as
line cuts so far as possible. An unusually large number of half
tones must be paid for in part by the author. Other more
expensive illustrations will be furnished at cost. Figures for
cuts should be made to conform to the size of the page when
reduced, that is, 5 by 7½ inches or less. The lettering should
be by means of printed numbers and letters pasted on the
drawings, in most cases.

Authors of articles longer than a thousand words will receive
fifty reprints of their publications free of cost. If more than
this are desired, the order should be given with the return of
the proof sheets. Extra copies and special covers or special
paper will be furnished at cost. Authors of short contributions
will receive a few extra copies of the number containing their
articles.

Manuscripts should be sent by express or registered mail.

Address all communications to

The Journal of Entomology and Zoology

[Pg 27]

Annelids from Laguna Beach

This list includes specimens recently determined by Dr. R. V. Chamberlin, but
does not include new species reported on at that time.

(Contribution from the Zoological Laboratory of Pomona College)

[Pg 28]

Structure of Dolichoglossus Pusillus

ALMA EVANS

The animals were studied from serial sections cut in several planes. The stains
used were carmine, hematoxylin and eosin. The hematoxylin seemed to show the
tissues more clearly. A graphic reconstruction was attempted, but did not prove
satisfactory because of the individual artificial foldings and contractions. The drawings
were obtained by the use of a camera lucida. The general drawings,
Figs. 1–9
inclusive, are not filled in in great detail. The special drawings are shown at greater
magnification with more of an attempt to show the actual condition.

Dolichoglossus is a soft worm-like animal with ciliated surface. It is divided
into three distinct regions: the proboscis, a long club-shaped organ; the collar, a
fold in the surface just behind the proboscis, and the trunk, a long cylindrical portion
posterior to the collar.

Dolichoglossus is a marine form living in sandy bays or sheltered places. Mucous
glands in the surface epithelium secrete a sticky fluid which covers the body and to
which tiny sand grains stick. The sand clinging to the mucous coated surface forms
a fragile temporary tube in which the animal is usually secluded. The animals in
the living condition are bright orange or red but lose their color very soon after
preservation in alcohol or formalin.

The proboscis cavity extending the entire length of the organ is surrounded by a
network of connective tissue supported by longitudinal bands of plain muscle. This
cavity is supposed to communicate with the exterior by a very small opening, the proboscis
pore, but this did not show in the specimens examined. The heart, proboscis
gland and notochord are located in the posterior part of the proboscis.

The collar contains the central nervous system, part of the notochord, the dorsal
blood vessel, ventral and dorsal mesenteries, mouth opening and anterior part of the
alimentary canal.

The trunk contains the alimentary canal, dorsal and ventral blood vessels, dorsal
and ventral nerves, the gill-slits, the reproductive bodies, dorsal and ventral mesenteries
and muscle bands.

The nervous system consists of three parts: the central, located in the collar
region, Fig. 5; the sub-epidermic network extending over the entire body just under
the surface epithelium, Figs. 1
–7; and the dorsal and ventral strands which are thickenings
of the sub-epidermic network extending throughout the trunk, Figs. 1 and 7.
There is also quite a decided thickening of the sub-epidermic network at the base of
the proboscis, Figs. 5, 6.

The vascular system consists of two parts, the central and the peripheral. The
central is made up of the heart, a thin-walled vesicle at the base of the proboscis
just dorsal to the notochord, and connected with it the proboscis gland, a plexus of
capillaries just anterior to the notochord. Fig. 5. The peripheral system is composed
of a ventral and a dorsal vessel. The dorsal starts at the heart and continues
just ventral of the dorsal nerve throughout the length of the body. Figs.
1, 5, 7. The
ventral vessel extends from the posterior border of the collar to the anal end. It is
connected with the dorsal vessel by a circular vessel in the posterior edge of the collar.

The mouth is situated ventrally at the base of the proboscis, within the collar,
[Pg 29]
and opens directly into the straight alimentary canal. The latter is a straight tube
extending from the mouth opening to the anus. Figs. 5, 1,
7, 9.

The alimentary canal in the anterior part of the collar gives off a diverticulum,
which grows forward and supports the proboscis. Because this diverticulum has the
vacuolated appearance of the notochordal tissue of higher animals, it has been regarded
as a notochord. It is largest at the base of the proboscis immediately anterior
to the heart. Figs. 5, 6.

The paired gill-slits occupy the region just posterior to the collar. They are
arranged in two longitudinal grooves in the dorsal wall. The number increases
throughout life, new slits appearing just behind those already in place. I found
about twenty-five to be the average number, while particular individuals had as low
as eighteen and twenty and as high as thirty and thirty-one. The gills are formed
in the shape of a U. A skeletal rod or gill bar separates the gills from each other.
The gills are supplied with blood from the dorsal vessel. Figs.
3, 7, 8.

The sexes are distinct. The ovaries and testes are saccular organs arranged in
a row along the gill and succeeding region. The sacs in other genera, for example
Balanoglossus as described by Shipley, open directly on to the epidermis. I have been
unable to see these openings in my preparations. Fig. 8 shows the position of the
ovaries in the female; the testes in the male are in a similar location.

The surface epithelium is modified ciliated columnar, varying slightly in thickness,
size of nuclei and size and shape of cell according to location. Figs.
13, 14, 15.

The epithelium forming the gills and intestine is also modified ciliated columnar.
That of the gills having short narrow cells and small nuclei, and that of the intestine
having longer thicker cells and large nuclei. Figs. 11, 10.

The connective tissue surrounding the proboscis cavity is of a peculiar arrangement.
The connective tissue itself consists of fine strands loosely interwoven, but
arranged in a definite manner. The strands form a fine network which gives a beautiful
lacy appearance. Small round nuclei are quite numerous in connection with the
strands. Longitudinal bands of plain muscle are very conspicuous in the connective
tissue. These muscle bands are probably used in altering the size and shape of the
proboscis. Figs. 4, 20, 21.

The nervous tissue consists of many fibers thickly interwoven. There are a few
small nuclei scattered about among the fibers. Figs. 12, 13.

The muscle is unstriated. The fibers are very long in some places, shorter in
others and always quite distinct.

(Contribution from the Zoological Laboratory of Pomona College)

REFERENCES

[Pg 30]

EXPLANATION OF FIGURES

Fig. 1. Cross section through the gill region showing gill opening. D. N., dorsal
nerve. D. V., Dorsal vessel. G. O., gill openings. A, alimentary corps. G., gill.
V. N., ventral nerve. V. V. ventral vessel. N., nervous tissue. ×40.

Fig. 2. Cross section through the base of the proboscis showing diverticulum wall
and proboscis gland. D., diverticulum. N., nervous tissue. P. G., proboscis gland.
×40.

Fig. 3. Longitudinal section through a gill opening. N., nervous tissue. G., gill.
G. O., gill opening. ×40.

Fig. 4. Cross section through the center of the proboscis. N., nervous tissue.
M. C., muscle in the connective tissue. T., connective tissue. ×90.

Fig. 5. Longitudinal section through the base of the proboscis and collar. M.,
mouth. C. N., central nervous system. H., heart. No., notochord. P. G., proboscis
gland. N., nervous network. A., alimentary canal. D. V., dorsal ventral. ×40.

Fig. 6. Cross section through the base of the proboscis showing thickened nerve
network. N., nerve network. D., diverticulum wall. H., heart. ×40.

Fig. 7. Cross section through gill region. D. N., dorsal nerve. D. B. V., dorsal
blood vessel. G. B., gill vessel. V. N., ventral nerve. V. V., ventral vessel. ×40.

Fig. 8. Longitudinal section through the gill region. G., gills. B., blood. O.,
ovary. N., nervous network. ×40.

Fig. 9. Cross section of alimentary canal. A., wall of alimentary canal. ×40.

Fig. 10. Intestinal epithelium, modified ciliated columnar. ×400.

Fig. 11. Epithelium of the gill, modified ciliated columnar. ×400.

Fig. 12. Nervous tissue. ×400.

Fig. 13. Surface epithelium of proboscis, modified ciliated columnar. ×400.

Fig. 14. Surface epithelium of collar, modified ciliated columnar. ×400.

Fig. 15. Surface epithelium of trunk, modified ciliated columnar. ×400.

Fig. 16. Cells of testis. ×400.

Fig. 17. Ovary. ×400.

Fig. 18. Plain muscle. ×400.

Fig. 19. Epithelium of diverticulum. ×400.

Fig. 20. Connective tissue of proboscis. ×400.

Fig. 21. Muscle bands in proboscis connective tissue. ×400.

[Pg 31]

[Pg 32]

[Pg 33]

[Pg 34]

Opisthobranchs from Laguna Beach

The determinations are by Dr. F. M. MacFarland

TECTIBRANCHS

NUDIBRANCHS

[Pg 35]

Central Nervous System of the Sand

Dollar Dendraster Excentricus Esh

WILLIAM A. HILTON

There seems to be little or no literature on the central nervous system of this
form of echinoderm. As might be expected, the general arrangement of radial and
circumoral bands are much as in sea-urchins, such as shown especially by Delage and
Herouard 1903. There are however some interesting features which make the study
of this type of special value.

In this paper only the chief mass of the central nervous system is considered. The
more evident parts of the central nervous system are arranged in general as in other
forms. The circumoral nerves issue from under the lantern and run along the oral,
cross over at the edge of the shell and then run along the aboral side. The five radial
nerves converge at the five ocular areas near the center of the aboral region. The

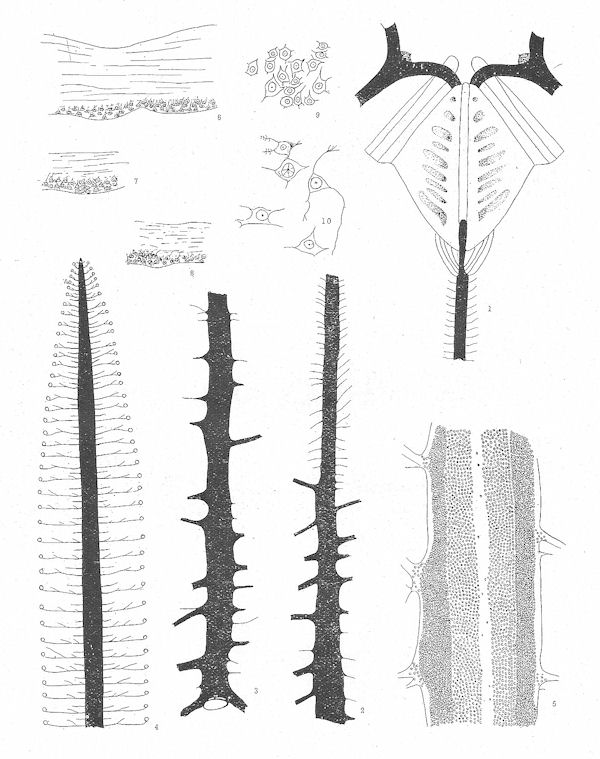

circumoral nerve ring is looped over and under parts of the lantern. Fig. 1 shows
a part of the lantern and parts of three loops of the circumoral nerve trunk. In the
center of the figure one fifth of the lantern is drawn in and from under it a radial
nerve is shown in the lower part of the figure. To the left and to the right of the
central bony part of the lantern the union of a radial with a circumoral nerve is
shown. At the junction of each radial nerve with the circumoral, is a little thickening
which seems to be a special cellular mass such as I have not found in other forms.
Fig. 7 is a section through a part of a circumoral strand, much enlarged. There are
only a few nerve cells, from one to two layers.

As the radial nerves leave the lantern they are quite evident in dissected specimens
as they are close to the bony skeleton with very little connective or other tissues
to obscure them. The use of aqueous methylene blue aids in following the smaller
branches. Near the lantern the branches are small as shown in fig. 2. When the
region is reached where the upper and lower surfaces of the shell begin to fuse, the
branches become larger and more irregularly arranged, as shown in the lower part
of fig. 1 and fig. 2.
After the nerve turns to run on the aboral side there is no change
in arrangement until the region of the tube feet is reached. In the region of the tube
feet the nerves become more numerous, smaller and more regular. The general distribution
of the nerves and the arrangement of the tube feet nerves are shown in fig. 4
which is from part of the upper end of the aboral nerve. The holes in the skeleton
for the tube feet are shown as circles on each side of the diagram.

The general structure of the chief central nerve trunks is quite similar as shown
in sections. Figs. 6, 7 and 8.
The nerve trunks have about one to two layers of
cells, the main part of the nerves are composed of longitudinal fibers. There are not
so many evident vertical fibers from cells as found in starfish and some other forms.
This change in position of the fibers may be in part due to the general modification
of structure. Whether this arrangement leads to other types of nerve association is
a question.

When the nerve trunks are removed, stained in methylene blue and examined
with the microscope something of the arrangement of the cells may be seen. In the
circumoral and oral radial nerves the nerve cells are thickly massed from side to side,
but in the upper part of the aboral nerve there is an evident arrangement of nerve
[Pg 36]
cells in zones. There is usually a central more or less clear zone, next on each side
a rather dense cell area and next on each side a very dense cell area, then a narrow
nearly clear zone on each side again.

As a rule slightly larger cells are found near the nerve trunks and as some of
these seem to send long branches out into the lateral trunks, they may be motor or
sensory, the association neurones are probably the smaller cells in farther. The cells
seem multipolar in most cases and in fact much more modified than the cells of starfish
or sea-urchin. Figs. 9 and 10.

REFERENCES

(Contribution from the Zoological Laboratory of Pomona College)

Explanation of Figures

Fig. 1. Diagram of one fifth of Aristotle's lantern of Dendraster showing three
loops of the circumoral nerve ring, and parts of three radial nerves, the central one
partly hidden at its origin by the lantern. The nerves are in black. ×9.

Fig. 2. Drawing of part of the first part of an oral radial nerve. ×9.

Fig. 3. Drawing of the lower end of an oral radial nerve. ×9.

Fig. 4. Drawing of the upper part of an aboral radial nerve. The eye spot
region is up in the figure. ×9.

Fig. 5. Camera lucida drawing of a part of an aboral nerve showing position of
cell areas. ×70.

Fig. 6. Drawing of a section of an oral radial nerve. ×300.

Fig. 7. Drawing of a section of circumoral nerve. ×300.

Fig. 8. Drawing of a section of aboral nerve. ×300.

Fig. 9. Nerve cells from central regions of a radial nerve. The arrangement
is as shown in the drawing, cells of various levels shown as one layer. Some of the
processes possibly relate nearby cells, but most fibers run into the general fibrous mass.
All fibers or fibrils are small. There is some indication of tigroid substance in some
of the cells. ×450.

Fig. 10. Nerve cells from near a lateral branch from the radial band. ×450.

[Pg 37]

[Pg 38]

Ants from the Claremont Laguna Region

This list includes ants collected chiefly in 1917. All determinations are by Dr. W. M.
Wheeler.

(Contribution from the Zoological Laboratory of Pomona College)

Journal of Entomology and Zoology—Advertising Section

The Journal of

Zoological Research

Edited by

WALTER E. COLLINGE, M. Sc., F. L. S., F. E. S.

The Gatty Marine Laboratory

The University, St. Andrews, Scotland

The subject matter is strictly confined to original zoological

research—systematic and anatomical. Fully illustrated by

lithographic plates and text figures.

Each volume will consist of 4 parts, price $5.

All subscriptions should be forwarded to

Messrs. Dulau & Co., Ltd.

37 Soho Square, London, W., England

GRIFFITH

Incubators

A simple, well constructed bacteriological
incubator

GAGE—The Microscope

An Introduction to Microscopic Methods and to Histology

By SIMON H. GAGE.

This work aims to give help to everyone who uses the microscope, whether
he is a beginner or an advanced worker.

COMSTOCK—A Manual for the Study of Insects

This hand-book is designed to meet the needs of teachers in the public
schools and of students in high schools and colleges.

NEEDHAM—General Biology

A book of outlines and practical studies for the general student

This book is expressly designed to help the general student obtain a comprehensive
grasp of the principles of biology.

NEEDHAM & LLOYD—The Life of Inland Waters

A Text-Book of Freshwater Biology

This book is a broad presentation of the field of fresh-water biology,
primarily in its scientific aspects, also in its relation to commercial, civic,
aesthetic and public health interests of man. There is no book in the English
language covering the field. Copiously illustrated with photographs from
Nature. 438 pages; 244 figures. Price $3.00.

GAGE—Optic Projection

This work of over 700 pages and with over 400 figures is of especial interest
to workers in all fields of Biology in that it deals especially with the use of
the Projection Microscope for demonstrations and for drawing. It also gives
the fundamental principles of all the forms of projection. A 16-page circular
will be sent on request. Postpaid, $3.00.

RILEY—Handbook of Medical Entomology

A concise account of poisonous, and disease-carrying insects and their
allies, including descriptions and illustrations of the principal species, with
keys for their determination, and method of control. Bound Library Buckram,
medium 8vo. Nearly 375 pages. Price $2.00 net.

Send for Descriptive Circular

The Comstock Publishing Company

Cornell Heights, Ithaca, N. Y.

THE "ALL GLASS MOUNT"

for Lepidoptera and other insects

Odontolabis wollastoni, Java

We are able at last to offer our customers an all glass mount that we believe
comes nearer to meeting the requirements of museums and private collectors
than any previously put on the market.

No cut can properly show this mount, which must be seen to be appreciated.
Write for Circular 192, which describes fully what we are offering.

When in need of Entomological supplies remember that we have the
best insect pins on the market and that our hand made Schmitt insect boxes
with three ply tops and bottoms are unsurpassed. Catalogue No. 33 free on
application.

Prompt shipments can be made from our large stock of United States
and exotic insects of all orders. We also prepare 150 different metamorphoses
of beneficial and injurious insects. Pupae now on hand are listed in circular
No. 198. Other circulars and price lists free upon request.

Ward's Natural Science Establishment

84-102 College Ave.    Rochester, N. Y.

Entomological News

A forty-eight page illustrated magazine, published monthly except August and

September, devoted to the study of INSECT LIFE. It contains a list

of the titles of the current Entomological Literature, and also

articles by the leading Entomologists in the United

States and Canada. Valuable information

for the beginner, the economic

entomologist and the

systematist.

To new subscribers, $1.90; Renewals, $2.00; payable in advance.

Single copies 25 cents. Address

ENTOMOLOGICAL NEWS

1900 Race Street, Philadelphia, Pa.

CLASS WORK MATERIAL

CAN BE PROCURED AT ANY TIME OF

THE YEAR FROM

C. S. BRIMLEY, Zoologist

1135 Newberne Avenue

RALEIGH, N. C., U. S. A.

Twenty-one years' experience     Price List on Application

The Journal of Parasitology

A Quarterly Devoted to Medical Zoology

This journal will be a medium for the prompt publication of briefer papers
and research notes on animal parasites. Emphasis laid on the morphology, life
history and biology of zooparasites and the relations of animals to disease.

Subscription, $2.00 a Volume

Do Business by Mail

It's profitable, with accurate lists of prospects. Our catalogue
contains vital information on Mail Advertising. Also prices and
quantity on 6,000 national mailing lists, 99% guaranteed. Such as:

Ross-Gould, 1027H Olive Street, St. Louis.

Ross-Gould

Mailing

Lists  St. Louis

Pomona College

Located in one of the most healthful and beautiful parts of the
west coast. The mountains reach an elevation of ten thousand feet
within a few miles of the college and these with the nearby ocean
afford many special advantages for the study of things not in books.
Special advantages are afforded by the fact that the college limits
its attendance, the freshman class being restricted to two hundred
applicants. The success of the college is particularly indicated by
the large proportion of the graduates who proceed to advanced
work in the large universities. In addition, well-manned departments
of music and art afford exceptional advantages.

For further information, address

Secretary of Pomona College

Claremont, California
